Home / Products / PP Compression Fittings / High pressure pp hdpe female threaded adaptor fittings

  • High pressure pp hdpe female threaded adaptor fittings
  • High pressure pp hdpe female threaded adaptor fittings

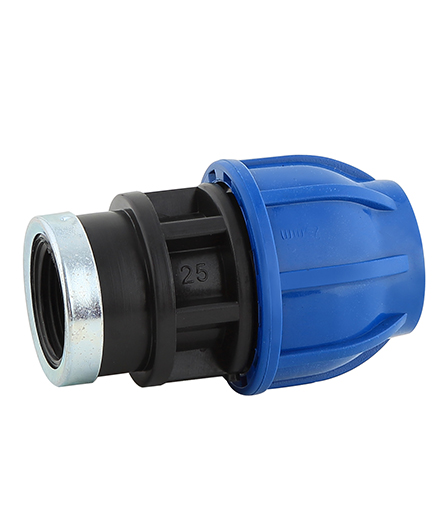

High pressure pp hdpe female threaded adaptor fittings

High pressure pp hdpe 1/2"-4" blue and black fast connecting female threaded adaptor plastic compression fittings for garden and irrigation

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: skpp307 Brand Name: NETTFIT Connection: fast connecting
Shape: Female Head Code: round Color: blue and black
Type: Coupling

Supply Ability

Supply Ability: 3000 Carton/Cartons per Week

Product Description

Female Adaptor

Specifications:  20mm--110mm

Thread from 1/2"-4"

Pressure piping applications
Ease of installation
Water distribution,Irrigation

SKPP307  FEMALE ADAPTOR
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
20 x 1/2"  222 0.5 0.3 0.22 10.91 10.21

20 x 3/4"  222 0.5 0.3 0.24 10.91 10.21
25 x 1/2"  150 0.5 0.3 0.26 10.90 10.20
25 x 3/4"  150 0.5 0.3 0.28 10.90 10.20
25 x 1"  150 0.5 0.3 0.28 10.90 10.20
32 x1/2"  100 0.5 0.3 0.24 11.10 10.40
32 x 3/4"  100 0.5 0.3 0.24 11.10 10.40
32 x  1"  100 0.5 0.3 0.24 11.10 10.40
32 x 1-1/4"  100 0.5 0.3 0.265 11.10 10.40
40 x 1"  60 0.5 0.3 0.265 12.22 11.52
40*1-1/4" 60 0.5 0.3 0.28 12.52 11.82
40*1-1/2" 60 0.5 0.3 0.265 12.22 11.52
50*1-1/4" 40 0.5 0.32 0.3 13.42 12.72
50*1-1/2" 40 0.5 0.32 0.3 13.42 12.72
50*2" 40 0.5 0.3 0.35 13.42 12.72
63*1-1/2" 20 0.5 0.3 0.265 10.94 10.24
63*2" 20 0.5 0.3 0.265 10.94 10.24
63*2-1/2" 20 0.5 0.3 0.265 10.94 10.24
75*2" 16 0.5 0.3 0.39 11.61 10.91
75*2-1/2" 16 0.5 0.3 0.375 11.61 10.91
75*3" 16 0.5 0.3 0.39 11.61 10.91
90*2-1/2" 12 0.47 0.3 0.42 13.44 12.74
90*3" 12 0.47 0.3 0.42 13.44 12.74
90*4" 12 0.47 0.3 0.42 13.44 12.74
110*3" 6 0.56 0.38 0.265 11.35 10.65
110*4" 6 0.45 0.35 0.35 11.56 10.86



SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
