20mm--110mm blue and black Pp hdpe fast connecting PN16 plastic end cap plug compression pipe fittings for irrigation and water supply
Quick Details
Material: | PP,HDPE | Technics: | Injection | Place of Origin: | Zhejiang, China (Mainland) |
Model Number: | SKPP112 | Brand Name: | NETTFIT | Connection: | fast connecting |
Shape: | Equal | Head Code: | round | Color: | blue and black |
Type: | Plug | Pressure | PN16 |
Supply Ability
Supply Ability: | 5000 Carton/Cartons per Week |
Product Description

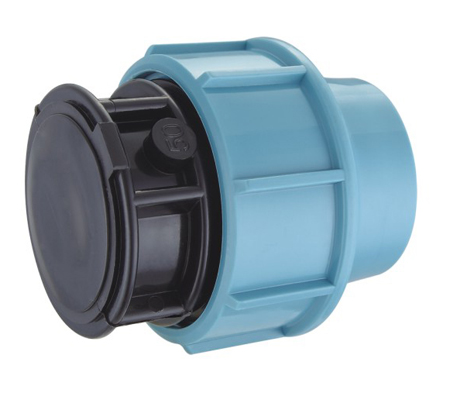

End Cap/ Plug
Specifications: 20mm--110mm
Pressure piping applications
Ease of installation
Water distribution, Irrigation
SKPP112 END CAP | ||||||||||
spec | qty/ctn | Package size | g.w. | n.w. | PICTURE | |||||
pc | m | m | m | kgs | kgs | |||||
20 | 260 | 0.5 | 0.3 | 0.265 | 12.40 | 11.70 |
|
|||
25 | 166 | 0.5 | 0.3 | 0.265 | 11.99 | 11.29 | ||||
32 | 120 | 0.5 | 0.3 | 0.265 | 11.38 | 10.68 | ||||
40 | 66 | 0.5 | 0.3 | 0.24 | 11.33 | 10.63 | ||||
50 | 45 | 0.5 | 0.33 | 0.28 | 13.21 | 12.51 | ||||
63 | 20 | 0.5 | 0.3 | 0.265 | 9.26 | 8.56 | ||||
75 | 16 | 0.5 | 0.3 | 0.28 | 10.70 | 10.00 | ||||
90 | 12 | 0.45 | 0.35 | 0.31 | 12.44 | 11.74 | ||||
110 | 12 | 0.58 | 0.41 | 0.35 | 21.45 | 20.75 |
SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
