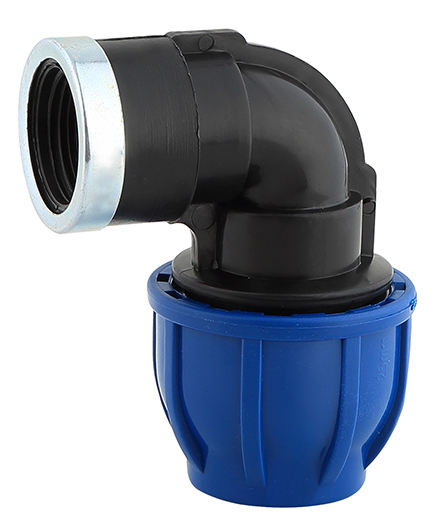

High performance pp female elbow compression fittings

High performance PP HDPE 20mm*1/2"-110mm*4" blue and black PN16 plastic female elbow pipe compression fittings for irrigation and water distribution

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: SKPP310 Brand Name: NETTFIT Connection: fast connecting
Shape: Female Head Code: round Color: blue and black
Type: Elbow  Pressure  PN16

Supply Ability

Supply Ability: 3000 Carton/Cartons per Week

Product Description

Female Elbow

Specifications:  20mm--110mm

Thread from 1/2"-4"

Pressure piping applications
Ease of installation
Water distribution,Irrigation

SKPP310 FEMALE ELBOW
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
20 x 1/2"  204 0.5 0.3 0.22 9.88 9.18

20 x 3/4"  200 0.5 0.3 0.24 9.88 9.18
25 x 1/2"  150 0.5 0.3 0.28 12.10 11.40
25 x 3/4"  150 0.5 0.3 0.28 12.10 11.40
25 x 1"  150 0.5 0.3 0.28 12.10 11.40
32 x 3/4"  100 0.5 0.3 0.28 9.34 8.64
32 x 1"  100 0.5 0.3 0.28 9.34 8.64
32 x 1-1/4"  80 0.5 0.3 0.265 9.34 8.64
40 x 1"  40 0.5 0.3 0.26 8.74 8.04
40*1-1/4" 32 0.5 0.3 0.22 8.51 7.81
40*1-1/2" 32 0.5 0.3 0.22 8.51 7.81
50*1-1/4" 20 0.5 0.3 0.24 7.74 7.04
50*1-1/2" 20 0.5 0.3 0.24 7.74 7.04
50*2" 20 0.5 0.3 0.26 9.12 8.42
63*1-1/2" 18 0.5 0.3 0.43 11.50 10.80
63*2" 18 0.5 0.3 0.43 11.50 10.80
63*2-1/2" 18 0.5 0.3 0.38 11.50 10.80
75*2" 7 0.5 0.3 0.265 6.76 6.06
75*2-1/2" 7 0.5 0.3 0.265 6.76 6.06
75*3" 7 0.5 0.3 0.265 6.76 6.06
90*2-1/2" 5 0.5 0.29 0.27 7.75 7.05
90*3" 5 0.55 0.29 0.29 7.75 7.05
90*4" 5 0.55 0.29 0.27 7.75 7.05
110*3" 4 0.55 0.29 0.27 9.51 8.81
110*4" 4 0.55 0.3 0.31 9.51 8.81





SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
